# ViTMSN

## ViTMSN

### Overview

The ViTMSN model was proposed in [Masked Siamese Networks for Label-Efficient Learning](https://arxiv.org/abs/2204.07141) by Mahmoud Assran, Mathilde Caron, Ishan Misra, Piotr Bojanowski, Florian Bordes, Pascal Vincent, Armand Joulin, Michael Rabbat, Nicolas Ballas. The paper presents a joint-embedding architecture to match the prototypes of masked patches with that of the unmasked patches. With this setup, their method yields excellent performance in the low-shot and extreme low-shot regimes.

The abstract from the paper is the following:

*We propose Masked Siamese Networks (MSN), a self-supervised learning framework for learning image representations. Our approach matches the representation of an image view containing randomly masked patches to the representation of the original unmasked image. This self-supervised pre-training strategy is particularly scalable when applied to Vision Transformers since only the unmasked patches are processed by the network. As a result, MSNs improve the scalability of joint-embedding architectures, while producing representations of a high semantic level that perform competitively on low-shot image classification. For instance, on ImageNet-1K, with only 5,000 annotated images, our base MSN model achieves 72.4% top-1 accuracy, and with 1% of ImageNet-1K labels, we achieve 75.7% top-1 accuracy, setting a new state-of-the-art for self-supervised learning on this benchmark.*

Tips:

* MSN (masked siamese networks) is a method for self-supervised pre-training of Vision Transformers (ViTs). The pre-training objective is to match the prototypes assigned to the unmasked views of the images to that of the masked views of the same images.
* The authors have only released pre-trained weights of the backbone (ImageNet-1k pre-training). So, to use that on your own image classification dataset, use the [ViTMSNForImageClassification](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNForImageClassification) class which is initialized from [ViTMSNModel](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNModel). Follow [this notebook](https://github.com/huggingface/notebooks/blob/main/examples/image_classification.ipynb) for a detailed tutorial on fine-tuning.
* MSN is particularly useful in the low-shot and extreme low-shot regimes. Notably, it achieves 75.7% top-1 accuracy with only 1% of ImageNet-1K labels when fine-tuned.

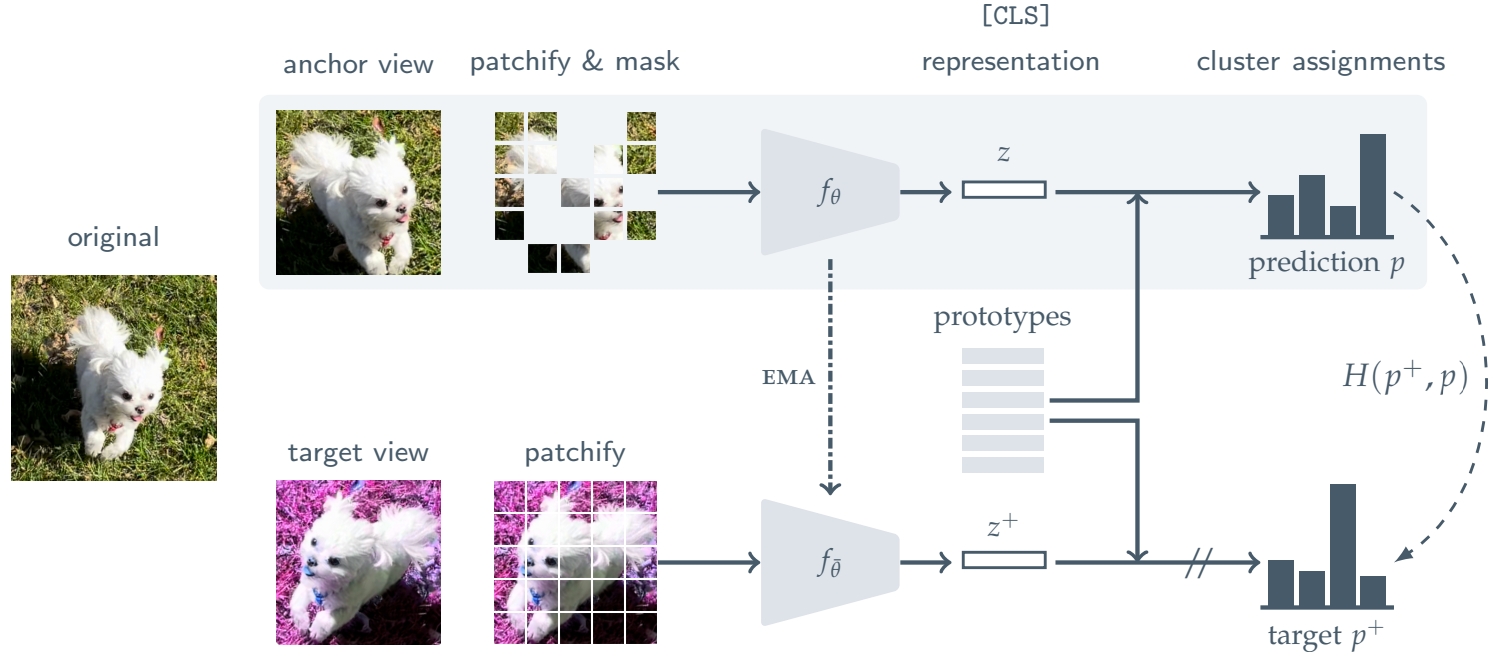

MSN architecture. Taken from the [original paper.](https://arxiv.org/abs/2204.07141)

<figure><img src="https://i.ibb.co/W6PQMdC/Screenshot-2022-09-13-at-9-08-40-AM.png" alt=""><figcaption></figcaption></figure>

This model was contributed by [sayakpaul](https://huggingface.co/sayakpaul). The original code can be found [here](https://github.com/facebookresearch/msn).

### Resources

A list of official BOINC AI and community (indicated by 🌎) resources to help you get started with ViT MSN.

Image Classification

* [ViTMSNForImageClassification](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNForImageClassification) is supported by this [example script](https://github.com/huggingface/transformers/tree/main/examples/pytorch/image-classification) and [notebook](https://colab.research.google.com/github/huggingface/notebooks/blob/main/examples/image_classification.ipynb).
* See also: [Image classification task guide](https://huggingface.co/docs/transformers/tasks/image_classification)

If you’re interested in submitting a resource to be included here, please feel free to open a Pull Request and we’ll review it! The resource should ideally demonstrate something new instead of duplicating an existing resource.

### ViTMSNConfig

#### class transformers.ViTMSNConfig

[\<source>](https://github.com/huggingface/transformers/blob/v4.34.1/src/transformers/models/vit_msn/configuration_vit_msn.py#L30)

( hidden\_size = 768num\_hidden\_layers = 12num\_attention\_heads = 12intermediate\_size = 3072hidden\_act = 'gelu'hidden\_dropout\_prob = 0.0attention\_probs\_dropout\_prob = 0.0initializer\_range = 0.02layer\_norm\_eps = 1e-06image\_size = 224patch\_size = 16num\_channels = 3qkv\_bias = True\*\*kwargs )

Parameters

* **hidden\_size** (`int`, *optional*, defaults to 768) — Dimensionality of the encoder layers and the pooler layer.
* **num\_hidden\_layers** (`int`, *optional*, defaults to 12) — Number of hidden layers in the Transformer encoder.
* **num\_attention\_heads** (`int`, *optional*, defaults to 12) — Number of attention heads for each attention layer in the Transformer encoder.
* **intermediate\_size** (`int`, *optional*, defaults to 3072) — Dimensionality of the “intermediate” (i.e., feed-forward) layer in the Transformer encoder.
* **hidden\_act** (`str` or `function`, *optional*, defaults to `"gelu"`) — The non-linear activation function (function or string) in the encoder and pooler. If string, `"gelu"`, `"relu"`, `"selu"` and `"gelu_new"` are supported.
* **hidden\_dropout\_prob** (`float`, *optional*, defaults to 0.0) — The dropout probability for all fully connected layers in the embeddings, encoder, and pooler.
* **attention\_probs\_dropout\_prob** (`float`, *optional*, defaults to 0.0) — The dropout ratio for the attention probabilities.
* **initializer\_range** (`float`, *optional*, defaults to 0.02) — The standard deviation of the truncated\_normal\_initializer for initializing all weight matrices.
* **layer\_norm\_eps** (`float`, *optional*, defaults to 1e-06) — The epsilon used by the layer normalization layers.
* **image\_size** (`int`, *optional*, defaults to 224) — The size (resolution) of each image.
* **patch\_size** (`int`, *optional*, defaults to 16) — The size (resolution) of each patch.
* **num\_channels** (`int`, *optional*, defaults to 3) — The number of input channels.
* **qkv\_bias** (`bool`, *optional*, defaults to `True`) — Whether to add a bias to the queries, keys and values.

This is the configuration class to store the configuration of a [ViTMSNModel](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNModel). It is used to instantiate an ViT MSN model according to the specified arguments, defining the model architecture. Instantiating a configuration with the defaults will yield a similar configuration to that of the ViT [facebook/vit\_msn\_base](https://huggingface.co/facebook/vit_msn_base) architecture.

Configuration objects inherit from [PretrainedConfig](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/configuration#transformers.PretrainedConfig) and can be used to control the model outputs. Read the documentation from [PretrainedConfig](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/configuration#transformers.PretrainedConfig) for more information.

Example:

Copied

```
>>> from transformers import ViTMSNModel, ViTMSNConfig

>>> # Initializing a ViT MSN vit-msn-base style configuration
>>> configuration = ViTConfig()

>>> # Initializing a model from the vit-msn-base style configuration
>>> model = ViTMSNModel(configuration)

>>> # Accessing the model configuration
>>> configuration = model.config
```

### ViTMSNModel

#### class transformers.ViTMSNModel

[\<source>](https://github.com/huggingface/transformers/blob/v4.34.1/src/transformers/models/vit_msn/modeling_vit_msn.py#L492)

( config: ViTMSNConfiguse\_mask\_token: bool = False )

Parameters

* **config** ([ViTMSNConfig](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNConfig)) — Model configuration class with all the parameters of the model. Initializing with a config file does not load the weights associated with the model, only the configuration. Check out the [from\_pretrained()](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/model#transformers.PreTrainedModel.from_pretrained) method to load the model weights.

The bare ViTMSN Model outputting raw hidden-states without any specific head on top. This model is a PyTorch [torch.nn.Module](https://pytorch.org/docs/stable/nn.html#torch.nn.Module) subclass. Use it as a regular PyTorch Module and refer to the PyTorch documentation for all matter related to general usage and behavior.

**forward**

[\<source>](https://github.com/huggingface/transformers/blob/v4.34.1/src/transformers/models/vit_msn/modeling_vit_msn.py#L516)

( pixel\_values: typing.Optional\[torch.Tensor] = Nonebool\_masked\_pos: typing.Optional\[torch.BoolTensor] = Nonehead\_mask: typing.Optional\[torch.Tensor] = Noneoutput\_attentions: typing.Optional\[bool] = Noneoutput\_hidden\_states: typing.Optional\[bool] = Noneinterpolate\_pos\_encoding: typing.Optional\[bool] = Nonereturn\_dict: typing.Optional\[bool] = None ) → [transformers.modeling\_outputs.BaseModelOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.BaseModelOutput) or `tuple(torch.FloatTensor)`

Parameters

* **pixel\_values** (`torch.FloatTensor` of shape `(batch_size, num_channels, height, width)`) — Pixel values. Pixel values can be obtained using [AutoImageProcessor](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/auto#transformers.AutoImageProcessor). See [ViTImageProcessor.**call**()](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/deit#transformers.DeiTFeatureExtractor.__call__) for details.
* **head\_mask** (`torch.FloatTensor` of shape `(num_heads,)` or `(num_layers, num_heads)`, *optional*) — Mask to nullify selected heads of the self-attention modules. Mask values selected in `[0, 1]`:
  * 1 indicates the head is **not masked**,
  * 0 indicates the head is **masked**.
* **output\_attentions** (`bool`, *optional*) — Whether or not to return the attentions tensors of all attention layers. See `attentions` under returned tensors for more detail.
* **output\_hidden\_states** (`bool`, *optional*) — Whether or not to return the hidden states of all layers. See `hidden_states` under returned tensors for more detail.
* **interpolate\_pos\_encoding** (`bool`, *optional*) — Whether to interpolate the pre-trained position encodings.
* **return\_dict** (`bool`, *optional*) — Whether or not to return a [ModelOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.utils.ModelOutput) instead of a plain tuple.
* **bool\_masked\_pos** (`torch.BoolTensor` of shape `(batch_size, num_patches)`, *optional*) — Boolean masked positions. Indicates which patches are masked (1) and which aren’t (0).

Returns

[transformers.modeling\_outputs.BaseModelOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.BaseModelOutput) or `tuple(torch.FloatTensor)`

A [transformers.modeling\_outputs.BaseModelOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.BaseModelOutput) or a tuple of `torch.FloatTensor` (if `return_dict=False` is passed or when `config.return_dict=False`) comprising various elements depending on the configuration ([ViTMSNConfig](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNConfig)) and inputs.

* **last\_hidden\_state** (`torch.FloatTensor` of shape `(batch_size, sequence_length, hidden_size)`) — Sequence of hidden-states at the output of the last layer of the model.
* **hidden\_states** (`tuple(torch.FloatTensor)`, *optional*, returned when `output_hidden_states=True` is passed or when `config.output_hidden_states=True`) — Tuple of `torch.FloatTensor` (one for the output of the embeddings, if the model has an embedding layer, + one for the output of each layer) of shape `(batch_size, sequence_length, hidden_size)`.

  Hidden-states of the model at the output of each layer plus the optional initial embedding outputs.
* **attentions** (`tuple(torch.FloatTensor)`, *optional*, returned when `output_attentions=True` is passed or when `config.output_attentions=True`) — Tuple of `torch.FloatTensor` (one for each layer) of shape `(batch_size, num_heads, sequence_length, sequence_length)`.

  Attentions weights after the attention softmax, used to compute the weighted average in the self-attention heads.

The [ViTMSNModel](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNModel) forward method, overrides the `__call__` special method.

Although the recipe for forward pass needs to be defined within this function, one should call the `Module` instance afterwards instead of this since the former takes care of running the pre and post processing steps while the latter silently ignores them.

Examples:

Copied

```
>>> from transformers import AutoImageProcessor, ViTMSNModel
>>> import torch
>>> from PIL import Image
>>> import requests

>>> url = "http://images.cocodataset.org/val2017/000000039769.jpg"
>>> image = Image.open(requests.get(url, stream=True).raw)

>>> image_processor = AutoImageProcessor.from_pretrained("facebook/vit-msn-small")
>>> model = ViTMSNModel.from_pretrained("facebook/vit-msn-small")
>>> inputs = image_processor(images=image, return_tensors="pt")
>>> with torch.no_grad():
...     outputs = model(**inputs)
>>> last_hidden_states = outputs.last_hidden_state
```

### ViTMSNForImageClassification

#### class transformers.ViTMSNForImageClassification

[\<source>](https://github.com/huggingface/transformers/blob/v4.34.1/src/transformers/models/vit_msn/modeling_vit_msn.py#L601)

( config: ViTMSNConfig )

Parameters

* **config** ([ViTMSNConfig](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNConfig)) — Model configuration class with all the parameters of the model. Initializing with a config file does not load the weights associated with the model, only the configuration. Check out the [from\_pretrained()](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/model#transformers.PreTrainedModel.from_pretrained) method to load the model weights.

ViTMSN Model with an image classification head on top e.g. for ImageNet.

This model is a PyTorch [torch.nn.Module](https://pytorch.org/docs/stable/nn.html#torch.nn.Module) subclass. Use it as a regular PyTorch Module and refer to the PyTorch documentation for all matter related to general usage and behavior.

**forward**

[\<source>](https://github.com/huggingface/transformers/blob/v4.34.1/src/transformers/models/vit_msn/modeling_vit_msn.py#L614)

( pixel\_values: typing.Optional\[torch.Tensor] = Nonehead\_mask: typing.Optional\[torch.Tensor] = Nonelabels: typing.Optional\[torch.Tensor] = Noneoutput\_attentions: typing.Optional\[bool] = Noneoutput\_hidden\_states: typing.Optional\[bool] = Noneinterpolate\_pos\_encoding: typing.Optional\[bool] = Nonereturn\_dict: typing.Optional\[bool] = None ) → [transformers.modeling\_outputs.ImageClassifierOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.ImageClassifierOutput) or `tuple(torch.FloatTensor)`

Parameters

* **pixel\_values** (`torch.FloatTensor` of shape `(batch_size, num_channels, height, width)`) — Pixel values. Pixel values can be obtained using [AutoImageProcessor](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/auto#transformers.AutoImageProcessor). See [ViTImageProcessor.**call**()](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/deit#transformers.DeiTFeatureExtractor.__call__) for details.
* **head\_mask** (`torch.FloatTensor` of shape `(num_heads,)` or `(num_layers, num_heads)`, *optional*) — Mask to nullify selected heads of the self-attention modules. Mask values selected in `[0, 1]`:
  * 1 indicates the head is **not masked**,
  * 0 indicates the head is **masked**.
* **output\_attentions** (`bool`, *optional*) — Whether or not to return the attentions tensors of all attention layers. See `attentions` under returned tensors for more detail.
* **output\_hidden\_states** (`bool`, *optional*) — Whether or not to return the hidden states of all layers. See `hidden_states` under returned tensors for more detail.
* **interpolate\_pos\_encoding** (`bool`, *optional*) — Whether to interpolate the pre-trained position encodings.
* **return\_dict** (`bool`, *optional*) — Whether or not to return a [ModelOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.utils.ModelOutput) instead of a plain tuple.

Returns

[transformers.modeling\_outputs.ImageClassifierOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.ImageClassifierOutput) or `tuple(torch.FloatTensor)`

A [transformers.modeling\_outputs.ImageClassifierOutput](https://huggingface.co/docs/transformers/v4.34.1/en/main_classes/output#transformers.modeling_outputs.ImageClassifierOutput) or a tuple of `torch.FloatTensor` (if `return_dict=False` is passed or when `config.return_dict=False`) comprising various elements depending on the configuration ([ViTMSNConfig](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNConfig)) and inputs.

* **loss** (`torch.FloatTensor` of shape `(1,)`, *optional*, returned when `labels` is provided) — Classification (or regression if config.num\_labels==1) loss.
* **logits** (`torch.FloatTensor` of shape `(batch_size, config.num_labels)`) — Classification (or regression if config.num\_labels==1) scores (before SoftMax).
* **hidden\_states** (`tuple(torch.FloatTensor)`, *optional*, returned when `output_hidden_states=True` is passed or when `config.output_hidden_states=True`) — Tuple of `torch.FloatTensor` (one for the output of the embeddings, if the model has an embedding layer, + one for the output of each stage) of shape `(batch_size, sequence_length, hidden_size)`. Hidden-states (also called feature maps) of the model at the output of each stage.
* **attentions** (`tuple(torch.FloatTensor)`, *optional*, returned when `output_attentions=True` is passed or when `config.output_attentions=True`) — Tuple of `torch.FloatTensor` (one for each layer) of shape `(batch_size, num_heads, patch_size, sequence_length)`.

  Attentions weights after the attention softmax, used to compute the weighted average in the self-attention heads.

The [ViTMSNForImageClassification](https://huggingface.co/docs/transformers/v4.34.1/en/model_doc/vit_msn#transformers.ViTMSNForImageClassification) forward method, overrides the `__call__` special method.

Although the recipe for forward pass needs to be defined within this function, one should call the `Module` instance afterwards instead of this since the former takes care of running the pre and post processing steps while the latter silently ignores them.

Examples:

Copied

```
>>> from transformers import AutoImageProcessor, ViTMSNForImageClassification
>>> import torch
>>> from PIL import Image
>>> import requests

>>> torch.manual_seed(2)
>>> url = "http://images.cocodataset.org/val2017/000000039769.jpg"
>>> image = Image.open(requests.get(url, stream=True).raw)

>>> image_processor = AutoImageProcessor.from_pretrained("facebook/vit-msn-small")
>>> model = ViTMSNForImageClassification.from_pretrained("facebook/vit-msn-small")

>>> inputs = image_processor(images=image, return_tensors="pt")
>>> with torch.no_grad():
...     logits = model(**inputs).logits
>>> # model predicts one of the 1000 ImageNet classes
>>> predicted_label = logits.argmax(-1).item()
>>> print(model.config.id2label[predicted_label])
Kerry blue terrier
```
