How to accelerate training

How to accelerate training with ONNX Runtime

Optimum integrates ONNX Runtime Training through an ORTTrainer API that extends Trainer in Transformers. With this extension, training time can be reduced by more than 35% for many popular BOINC AI models compared to PyTorch under eager mode.

ORTTrainer and ORTSeq2SeqTrainer APIs make it easy to compose ONNX Runtime (ORT) with other features in Trainer. It contains feature-complete training loop and evaluation loop, and supports hyperparameter search, mixed-precision training and distributed training with multiple NVIDIA and AMD GPUs. With the ONNX Runtime backend, ORTTrainer and ORTSeq2SeqTrainer take advantage of:

• Computation graph optimizations: constant foldings, node eliminations, node fusions

• Efficient memory planning

• Kernel optimization

• ORT fused Adam optimizer: batches the elementwise updates applied to all the model’s parameters into one or a few kernel launches

• More efficient FP16 optimizer: eliminates a great deal of device to host memory copies

• Mixed precision training

Test it out to achieve lower latency, higher throughput, and larger maximum batch size while training models in 🌍 Transformers!

Performance

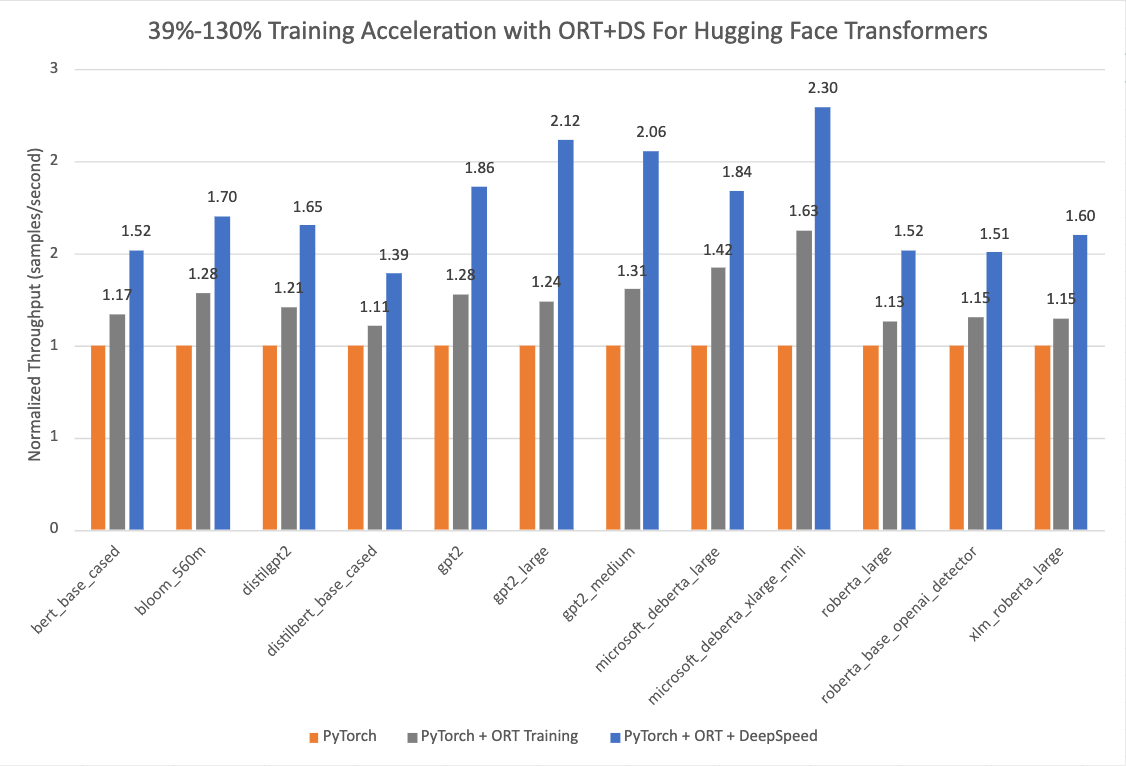

The chart below shows impressive acceleration from 39% to 130% for BOINC AImodels with Optimum when using ONNX Runtime and DeepSpeed ZeRO Stage 1 for training. The performance measurements were done on selected BOINC AI models with PyTorch as the baseline run, only ONNX Runtime for training as the second run, and ONNX Runtime + DeepSpeed ZeRO Stage 1 as the final run, showing maximum gains. The Optimizer used for the baseline PyTorch runs is the AdamW optimizer and the ORT Training runs use the Fused Adam Optimizer(available in ORTTrainingArguments). The runs were performed on a single Nvidia A100 node with 8 GPUs.

The version information used for these runs is as follows:

Copied

PyTorch: 1.14.0.dev20221103+cu116; ORT: 1.14.0.dev20221103001+cu116; DeepSpeed: 0.6.6; BOINC AI: 4.24.0.dev0; Optimum: 1.4.1.dev0; Cuda: 11.6.2

Start by setting up the environment

To use ONNX Runtime for training, you need a machine with at least one NVIDIA or AMD GPU.

To use ORTTrainer or ORTSeq2SeqTrainer, you need to install ONNX Runtime Training module and Optimum.

Install ONNX Runtime

To set up the environment, we strongly recommend you install the dependencies with Docker to ensure that the versions are correct and well configured. You can find dockerfiles with various combinations here.

Here below we take the installation of onnxruntime-training 1.14.0 as an example:

• If you want to install onnxruntime-training 1.14.0 via Dockerfile:

Copied

docker build -f Dockerfile-ort1.14.0-cu116 -t ort/train:1.14.0 .

• If you want to install the dependencies beyond in a local Python environment. You can pip install them once you have CUDA 11.6 and cuDNN 8 well installed.

Copied

pip install onnx ninja
pip install torch==1.13.1+cu116 torchvision==0.14.1 -f https://download.pytorch.org/whl/cu116/torch_stable.html
pip install onnxruntime-training==1.14.0 -f https://download.onnxruntime.ai/onnxruntime_stable_cu116.html
pip install torch-ort
pip install --upgrade protobuf==3.20.2

And run post-installation configuration:

Copied

python -m torch_ort.configure

Install Optimum

You can install Optimum via pypi:

Copied

pip install optimum

Or install from source:

Copied

pip install git+https://github.com/boincai/optimum.git

This command installs the current main dev version of Optimum, which could include latest developments(new features, bug fixes). However, the main version might not be very stable. If you run into any problem, please open an issue so that we can fix it as soon as possible.

ORTTrainer

The ORTTrainer class inherits the Trainer of Transformers. You can easily adapt the codes by replacing Trainer of transformers with ORTTrainer to take advantage of the acceleration empowered by ONNX Runtime. Here is an example of how to use ORTTrainer compared with Trainer:

Copied

-from transformers import Trainer, TrainingArguments
+from optimum.onnxruntime import ORTTrainer, ORTTrainingArguments

# Step 1: Define training arguments
-training_args = TrainingArguments(
+training_args = ORTTrainingArguments(
    output_dir="path/to/save/folder/",
-   optim = "adamw_ba",
+   optim="adamw_ort_fused",
    ...
)

# Step 2: Create your ONNX Runtime Trainer
-trainer = Trainer(
+trainer = ORTTrainer(
    model=model,
    args=training_args,
    train_dataset=train_dataset,
+   feature="text-classification",
    ...
)

# Step 3: Use ONNX Runtime for training!🌍
trainer.train()

Check out more detailed example scripts in the optimum repository.

ORTSeq2SeqTrainer

The ORTSeq2SeqTrainer class is similar to the Seq2SeqTrainer of Transformers. You can easily adapt the codes by replacing Seq2SeqTrainer of transformers with ORTSeq2SeqTrainer to take advantage of the acceleration empowered by ONNX Runtime. Here is an example of how to use ORTSeq2SeqTrainer compared with Seq2SeqTrainer:

Copied

-from transformers import Seq2SeqTrainer, Seq2SeqTrainingArguments
+from optimum.onnxruntime import ORTSeq2SeqTrainer, ORTSeq2SeqTrainingArguments

# Step 1: Define training arguments
-training_args = Seq2SeqTrainingArguments(
+training_args = ORTSeq2SeqTrainingArguments(
    output_dir="path/to/save/folder/",
-   optim = "adamw_ba",
+   optim="adamw_ort_fused",
    ...
)

# Step 2: Create your ONNX Runtime Seq2SeqTrainer
-trainer = Seq2SeqTrainer(
+trainer = ORTSeq2SeqTrainer(
    model=model,
    args=training_args,
    train_dataset=train_dataset,
+   feature="text2text-generation",
    ...
)

# Step 3: Use ONNX Runtime for training!🌍
trainer.train()

Check out more detailed example scripts in the optimum repository.

ORTTrainingArguments

The ORTTrainingArguments class inherits the TrainingArguments class in Transformers. Besides the optimizers implemented in Transformers, it allows you to use the optimizers implemented in ONNX Runtime. Replace Seq2SeqTrainingArguments with ORTSeq2SeqTrainingArguments:

Copied

-from transformers import TrainingArguments
+from optimum.onnxruntime import ORTTrainingArguments

-training_args = TrainingArguments(
+training_args =  ORTTrainingArguments(
    output_dir="path/to/save/folder/",
    num_train_epochs=1,
    per_device_train_batch_size=8,
    per_device_eval_batch_size=8,
    warmup_steps=500,
    weight_decay=0.01,
    logging_dir="path/to/save/folder/",
-   optim = "adamw_ba",
+   optim="adamw_ort_fused",  # Fused Adam optimizer implemented by ORT
)

DeepSpeed is supported by ONNX Runtime(only ZeRO stage 1 and 2 for the moment). You can find some DeepSpeed configuration examples in the Optimum repository.

ORTSeq2SeqTrainingArguments

The ORTSeq2SeqTrainingArguments class inherits the Seq2SeqTrainingArguments class in Transformers. Besides the optimizers implemented in Transformers, it allows you to use the optimizers implemented in ONNX Runtime. Replace Seq2SeqTrainingArguments with ORTSeq2SeqTrainingArguments:

Copied

-from transformers import Seq2SeqTrainingArguments
+from optimum.onnxruntime import ORTSeq2SeqTrainingArguments

-training_args = Seq2SeqTrainingArguments(
+training_args =  ORTSeq2SeqTrainingArguments(
    output_dir="path/to/save/folder/",
    num_train_epochs=1,
    per_device_train_batch_size=8,
    per_device_eval_batch_size=8,
    warmup_steps=500,
    weight_decay=0.01,
    logging_dir="path/to/save/folder/",
-   optim = "adamw_ba",
+   optim="adamw_ort_fused",  # Fused Adam optimizer implemented by ORT
)

DeepSpeed is supported by ONNX Runtime(only ZeRO stage 1 and 2 for the moment). You can find some DeepSpeed configuration examples in the Optimum repository.

ORTModule+StableDiffusion

Optimum supports accelerating BOINC AI Diffusers with ONNX Runtime in this example. The core changes required to enable ONNX Runtime Training are summarized below:

Copied

import torch
from diffusers import AutoencoderKL, UNet2DConditionModel
from transformers import CLIPTextModel

+from onnxruntime.training.ortmodule import ORTModule
+from onnxruntime.training.optim.fp16_optimizer import FP16_Optimizer as ORT_FP16_Optimizer

unet = UNet2DConditionModel.from_pretrained(
    "CompVis/stable-diffusion-v1-4",
    subfolder="unet",
    ...
)
text_encoder = CLIPTextModel.from_pretrained(
    "CompVis/stable-diffusion-v1-4",
    subfolder="text_encoder",
    ...
)
vae = AutoencoderKL.from_pretrained(
    "CompVis/stable-diffusion-v1-4",
    subfolder="vae",
    ...
)

optimizer = torch.optim.AdamW(
    unet.parameters(),
    ...
)

+vae = ORTModule(vae)
+text_encoder = ORTModule(text_encoder)
+unet = ORTModule(unet)

+optimizer = ORT_FP16_Optimizer(optimizer)

Other Resources

• Blog posts

  • Optimum + ONNX Runtime: Easier, Faster training for your BOINC AI models

  • Accelerate PyTorch transformer model training with ONNX Runtime - a deep dive

  • ONNX Runtime Training Technical Deep Dive

• Optimum github

• ONNX Runtime github

• Torch ORT github

• Download ONNX Runtime stable versions

If you have any problems or questions regarding ORTTrainer, please file an issue with Optimum Github or discuss with us on BOINC AI’s community forum, cheers 🌍 !
