Cache

Manage BOINCAI_hub cache-system

Understand caching

The BOINC AI Hub cache-system is designed to be the central cache shared across libraries that depend on the Hub. It has been updated in v0.8.0 to prevent re-downloading same files between revisions.

The caching system is designed as follows:

Copied

<CACHE_DIR>
├─ <MODELS>
├─ <DATASETS>
├─ <SPACES>

The <CACHE_DIR> is usually your user’s home directory. However, it is customizable with the cache_dir argument on all methods, or by specifying either HF_HOME or BOINC AI_HUB_CACHE environment variable.

Models, datasets and spaces share a common root. Each of these repositories contains the repository type, the namespace (organization or username) if it exists and the repository name:

Copied

<CACHE_DIR>
├─ models--julien-c--EsperBERTo-small
├─ models--lysandrejik--arxiv-nlp
├─ models--bert-base-cased
├─ datasets--glue
├─ datasets--boincai--DataMeasurementsFiles
├─ spaces--dalle-mini--dalle-mini

It is within these folders that all files will now be downloaded from the Hub. Caching ensures that a file isn’t downloaded twice if it already exists and wasn’t updated; but if it was updated, and you’re asking for the latest file, then it will download the latest file (while keeping the previous file intact in case you need it again).

In order to achieve this, all folders contain the same skeleton:

Copied

Each folder is designed to contain the following:

Refs

The refs folder contains files which indicates the latest revision of the given reference. For example, if we have previously fetched a file from the main branch of a repository, the refs folder will contain a file named main, which will itself contain the commit identifier of the current head.

If the latest commit of main has aaaaaa as identifier, then it will contain aaaaaa.

If that same branch gets updated with a new commit, that has bbbbbb as an identifier, then re-downloading a file from that reference will update the refs/main file to contain bbbbbb.

Blobs

The blobs folder contains the actual files that we have downloaded. The name of each file is their hash.

Snapshots

The snapshots folder contains symlinks to the blobs mentioned above. It is itself made up of several folders: one per known revision!

In the explanation above, we had initially fetched a file from the aaaaaa revision, before fetching a file from the bbbbbb revision. In this situation, we would now have two folders in the snapshots folder: aaaaaa and bbbbbb.

In each of these folders, live symlinks that have the names of the files that we have downloaded. For example, if we had downloaded the README.md file at revision aaaaaa, we would have the following path:

Copied

That README.md file is actually a symlink linking to the blob that has the hash of the file.

By creating the skeleton this way we open the mechanism to file sharing: if the same file was fetched in revision bbbbbb, it would have the same hash and the file would not need to be re-downloaded.

.no_exist (advanced)

In addition to the blobs, refs and snapshots folders, you might also find a .no_exist folder in your cache. This folder keeps track of files that you’ve tried to download once but don’t exist on the Hub. Its structure is the same as the snapshots folder with 1 subfolder per known revision:

Copied

Unlike the snapshots folder, files are simple empty files (no symlinks). In this example, the file "config_that_does_not_exist.json" does not exist on the Hub for the revision "aaaaaa". As it only stores empty files, this folder is neglectable is term of disk usage.

So now you might wonder, why is this information even relevant? In some cases, a framework tries to load optional files for a model. Saving the non-existence of optional files makes it faster to load a model as it saves 1 HTTP call per possible optional file. This is for example the case in transformers where each tokenizer can support additional files. The first time you load the tokenizer on your machine, it will cache which optional files exists (and which doesn’t) to make the loading time faster for the next initializations.

To test if a file is cached locally (without making any HTTP request), you can use the try_to_load_from_cache() helper. It will either return the filepath (if exists and cached), the object _CACHED_NO_EXIST (if non-existence is cached) or None (if we don’t know).

Copied

In practice

In practice, your cache should look like the following tree:

Copied

Limitations

In order to have an efficient cache-system, boincai-hub uses symlinks. However, symlinks are not supported on all machines. This is a known limitation especially on Windows. When this is the case, boincai_hub do not use the blobs/ directory but directly stores the files in the snapshots/ directory instead. This workaround allows users to download and cache files from the Hub exactly the same way. Tools to inspect and delete the cache (see below) are also supported. However, the cache-system is less efficient as a single file might be downloaded several times if multiple revisions of the same repo is downloaded.

If you want to benefit from the symlink-based cache-system on a Windows machine, you either need to activate Developer Mode or to run Python as an administrator.

When symlinks are not supported, a warning message is displayed to the user to alert them they are using a degraded version of the cache-system. This warning can be disabled by setting the HF_HUB_DISABLE_SYMLINKS_WARNING environment variable to true.

Caching assets

In addition to caching files from the Hub, downstream libraries often requires to cache other files related to HF but not handled directly by boincai_hub (example: file downloaded from GitHub, preprocessed data, logs,…). In order to cache those files, called assets, one can use cached_assets_path(). This small helper generates paths in the HF cache in a unified way based on the name of the library requesting it and optionally on a namespace and a subfolder name. The goal is to let every downstream libraries manage its assets its own way (e.g. no rule on the structure) as long as it stays in the right assets folder. Those libraries can then leverage tools from boincai_hub to manage the cache, in particular scanning and deleting parts of the assets from a CLI command.

Copied

cached_assets_path() is the recommended way to store assets but is not mandatory. If your library already uses its own cache, feel free to use it!

Assets in practice

In practice, your assets cache should look like the following tree:

Copied

Scan your cache

At the moment, cached files are never deleted from your local directory: when you download a new revision of a branch, previous files are kept in case you need them again. Therefore it can be useful to scan your cache directory in order to know which repos and revisions are taking the most disk space. boincai_hub provides an helper to do so that can be used via boincai-cli or in a python script.

Scan cache from the terminal

The easiest way to scan your HF cache-system is to use the scan-cache command from boincai-cli tool. This command scans the cache and prints a report with information like repo id, repo type, disk usage, refs and full local path.

The snippet below shows a scan report in a folder in which 4 models and 2 datasets are cached.

Copied

To get a more detailed report, use the --verbose option. For each repo, you get a list of all revisions that have been downloaded. As explained above, the files that don’t change between 2 revisions are shared thanks to the symlinks. This means that the size of the repo on disk is expected to be less than the sum of the size of each of its revisions. For example, here bert-base-cased has 2 revisions of 1.4G and 1.5G but the total disk usage is only 1.9G.

Copied

Grep example

Since the output is in tabular format, you can combine it with any grep-like tools to filter the entries. Here is an example to filter only revisions from the “t5-small” model on a Unix-based machine.

Copied

Scan cache from Python

For a more advanced usage, use scan_cache_dir() which is the python utility called by the CLI tool.

You can use it to get a detailed report structured around 4 dataclasses:

Here is a simple usage example. See reference for details.

Copied

Clean your cache

Scanning your cache is interesting but what you really want to do next is usually to delete some portions to free up some space on your drive. This is possible using the delete-cache CLI command. One can also programmatically use the delete_revisions() helper from HFCacheInfo object returned when scanning the cache.

Delete strategy

To delete some cache, you need to pass a list of revisions to delete. The tool will define a strategy to free up the space based on this list. It returns a DeleteCacheStrategy object that describes which files and folders will be deleted. The DeleteCacheStrategy allows give you how much space is expected to be freed. Once you agree with the deletion, you must execute it to make the deletion effective. In order to avoid discrepancies, you cannot edit a strategy object manually.

The strategy to delete revisions is the following:

  • the snapshot folder containing the revision symlinks is deleted.

  • blobs files that are targeted only by revisions to be deleted are deleted as well.

  • if a revision is linked to 1 or more refs, references are deleted.

  • if all revisions from a repo are deleted, the entire cached repository is deleted.

Revision hashes are unique across all repositories. This means you don’t need to provide any repo_id or repo_type when removing revisions.

If a revision is not found in the cache, it will be silently ignored. Besides, if a file or folder cannot be found while trying to delete it, a warning will be logged but no error is thrown. The deletion continues for other paths contained in the DeleteCacheStrategy object.

Clean cache from the terminal

The easiest way to delete some revisions from your HF cache-system is to use the delete-cache command from boincai-cli tool. The command has two modes. By default, a TUI (Terminal User Interface) is displayed to the user to select which revisions to delete. This TUI is currently in beta as it has not been tested on all platforms. If the TUI doesn’t work on your machine, you can disable it using the --disable-tui flag.

Using the TUI

This is the default mode. To use it, you first need to install extra dependencies by running the following command:

Copied

Then run the command:

Copied

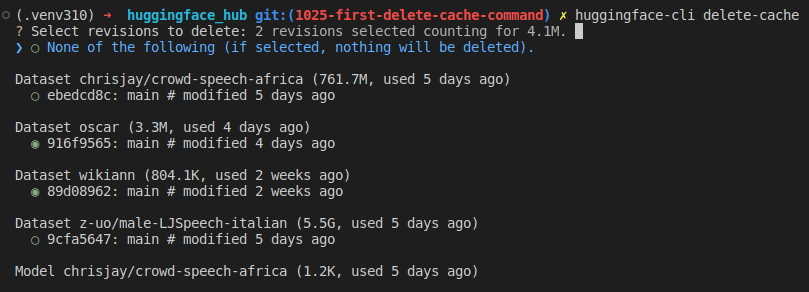

You should now see a list of revisions that you can select/deselect:

Instructions:

  • Press keyboard arrow keys <up> and <down> to move the cursor.

  • Press <space> to toggle (select/unselect) an item.

  • When a revision is selected, the first line is updated to show you how much space will be freed.

  • Press <enter> to confirm your selection.

  • If you want to cancel the operation and quit, you can select the first item (“None of the following”). If this item is selected, the delete process will be cancelled, no matter what other items are selected. Otherwise you can also press <ctrl+c> to quit the TUI.

Once you’ve selected the revisions you want to delete and pressed <enter>, a last confirmation message will be prompted. Press <enter> again and the deletion will be effective. If you want to cancel, enter n.

Copied

Without TUI

As mentioned above, the TUI mode is currently in beta and is optional. It may be the case that it doesn’t work on your machine or that you don’t find it convenient.

Another approach is to use the --disable-tui flag. The process is very similar as you will be asked to manually review the list of revisions to delete. However, this manual step will not take place in the terminal directly but in a temporary file generated on the fly and that you can manually edit.

This file has all the instructions you need in the header. Open it in your favorite text editor. To select/deselect a revision, simply comment/uncomment it with a #. Once the manual review is done and the file is edited, you can save it. Go back to your terminal and press <enter>. By default it will compute how much space would be freed with the updated list of revisions. You can continue to edit the file or confirm with "y".

Copied

Example of command file:

Copied

Clean cache from Python

For more flexibility, you can also use the delete_revisions() method programmatically. Here is a simple example. See reference for details.

Copied
